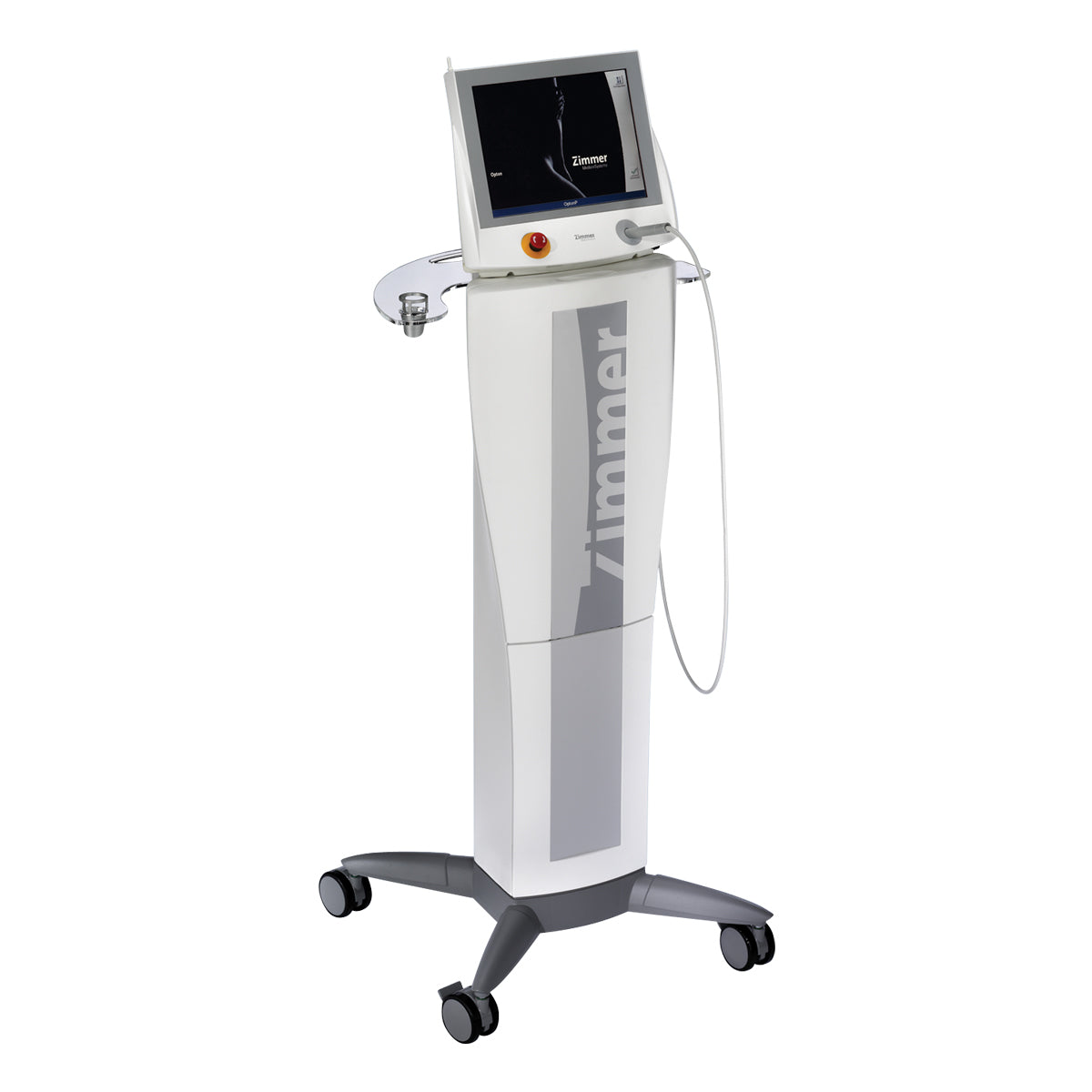

Zimmer OptonPro Laser

The OptonPro is an ANSI Class IV laser (Class IIIb with Health Canada) system. The Zimmer laser is easy to use with its touch screen and simple protocol library.

The large 12" touch screen clearly shows all possible adjustments and requirements for the treatment.  Treatments set up fast and easy through the user friendly design

Treatment protocols for each indication are listed in the easy to use treatment library. Protocols can be customized at any time during the treatment.

Adjust for skin tone and depth of penetration through the integrated meter. Using an easy to administer thermal threshold test all required calculations are automatically calculated and fast, reliable treatments can be done usually in less than five minutes


  • plantar fasciitis
  • myofascial trigger points
  • myopathy/tendinopathy
  • carpal tunnel
  • arthropathies/arthroses
  • lumbalgia/ischialgia
  • muscle injuries
  • pain syndromes
  • Sciatica
  • neuralgias
  • sprains, muscle tear
  • rheumatoid arthritis
  • cervical spondylarthrosis
  • Morton’s neuroma


  • 7 Watts of power, 9 W/cm2
  • 12“ colour touch screen
  • adjust settings at any time
  • comprehensive treatment library
  • SD card for updates
  • extensive memory options (2 x 120 entries)
  • integrated calibration sensor
  • comprehensive setup options
  • multiple languages available


  • Laser diodes near infrared range, 4 units in parallel operation, wavelengths: 2 x 810 nm / 2 x 980 nm
  • Emitted power max. 7000 mW (7 W) continuous, unpulsed
    • Treatment field min. 0.8 cm²
    • with large spacer: min. 9.0 cm²
    • Power density without spacer - max. 9 W/cm²
    • Power density with spacer large (4.5 cm) - max. 1.1 W/cm²
  • Operating modes: continuous wave, serial pulse, burst, single pulse
  • Fixed programs, individually adaptable plus
    • 120 memory slots for custom programmes
    • 120 memory slots for favourites
  • Beam divergence 35°
  • Repetition rate 0.1 to 1Hz, 2 Hz, 4 Hz, 5 Hz, 10 Hz, 25 Hz, 50 Hz (CW operating mode)
  • Pulse duration 0.1 to 5 s (pulse operating mode)
  • Security key lock and interlock
  • Energy meter with preset and reminder function
  • Thermal threshold test
  • Calibration sensor and software calibration function
  • SD card 1 GB standard for memory, indication menu, error logbook, backups and updates
  • Cart included
